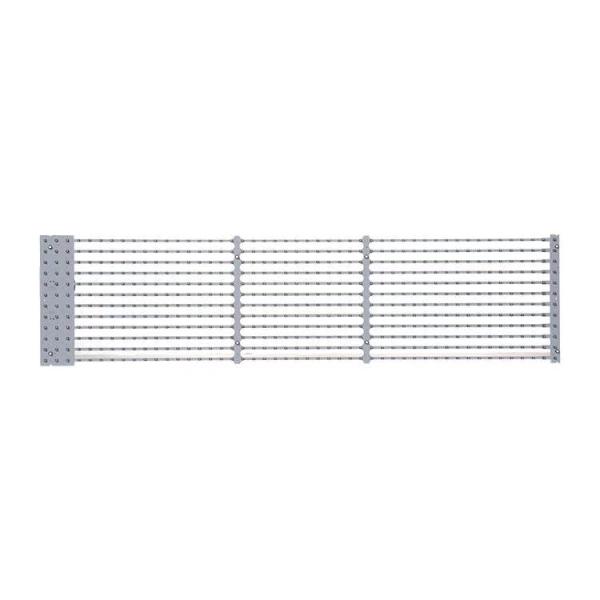

P10 SMD Outdoor transparent curtain advertising flexible led display screen video indoor
Features:
1. Light weight: 10kg/pcs
2. Hight refresh rate:1920 Hz~3840Hz/s refresh rate
3. Low brightness and High gray scale:14Bit-16Bit
4. Easy to install: Fast lock design,without tool.
5. High IP: IP65 .
| Module Specifications |
| 1 | Pixel Pitch | 10.42mm |
| 2 | Led Type | SMD1921 (Anti-UV) |
| 3 | Driving IC | ICN/ MBI |
| 4 | LED lamp | Nationstar |
| Cabinet Specification
|
| 1 | Cabinet Size | 500*1000mm |
| 2 | Cabinet Resolution | 48*96pixels |
| 3 | Module Qty. | 1x2pcs |
| 4 | Cabinet Materials | Die-casting Aluminum |
| 5 | Cabinet Weight | 10Kg |
| Screen Parameters
|
| 1 | Screen Size | costom size |
| 2 | Brightness | ≥4500cd/m2 |
| 3 | Scanning Mode | 1/16scan |
| 4 | Viewing Angle | H:140°;V:140° |
| 5 | Viewing Distance | >10m |
| 6 | Gray Level | 16 Bit |
| 7 | Refresh Frequency | ≥1920 Hz |
| 8 | Power Input | AC 220-240V |
| 9 | Power Comsuption | Max: 600W/㎡ Average: 200W/㎡ |
| 10 | MTBF--hours | >10,000 hours |
| 11 | Life--hours | ≥100,000 hours |
| 12 | IP Grade | IP40 |
| 13 | Operating Temperature | ﹣20℃～+60℃or﹣40℃～+60℃ |
| 14 | Storage Humidity | 10%-85%RH |
| 15 | Control Syetem | Novastar A5s |
| 16 | Operating System | Windows98/2000/NT/XP |
| 17 | Power Supply | 5V 40A 200W /5V60A 300W |
| 18 | Maintance Access | Back service |
| 19 | Installation method | Back Frame /Hoisting /Inner Arc Installation |
| 20 | Display function file formats | AVI, MOV, MPG, DAT, VOB |
Glass LED display viewing:
Hanging type shop window LED display :
B.Fixed type:
advantages:
1. 7 Years led display factory.
2. Up to 60% customer referral rate
3. Price advantage, factory price.
4. Our sales is peofessional , we have a strong technical team for your special needs,such as OEM and ODM service
5. Our Tenet: put coustomers in mind, Customer requirements are fundamental to us, we make different solutions accroding different requirements of customers
After-sell Service:
2 years quality guarantee .
Lifetime free maintenance , we will reponse you in 24 houres if you have any question about the led screen,
maintenance guidance and problem solution supplied in 48 hours.
One week free technical training .
Product Tags:
|
|
Transparent IP65 P10.42 SMD1921 P10 SMD Led Curtain Screen Images
|
